Larry's To Do List: a tuturial on using TMS WEB Core

Sunday, September 16, 2018

Larry’s To Do List (guest article)

Introduction.

This is a tutorial describing my journey learning TMS Web Core from TMS Software. I’m a Delphi / Pascal developer who started writing Pascal back in the early Turbo Pascal days and then moved on to Delphi when it was first released. For the last 20 plus years I’ve been writing Windows accounting apps for my clients, using many of TMS Software's great components.

A few years back, with the advent of mobile devices, my clients started requesting that pieces of the software be accessible from their smart phones and tablets. I had tried many approaches but was struggling with the way things are handled on the web vs Windows. Of late I’ve been playing with Bootstrap, jQuery using Ajax to communicate with PHP backends. But JavaScript wasn’t my “native” language. So, when TMS Web Core came out I was a pretty happy guy. At last I would be able to put some of my apps onto the web.

As a way of learning TMS Web Core I decided to write a small app to keep track of my To Do’s. I’m a list maker who at the start of each day reviews what needs doing. This hand-written list has the Date Due, a Description and the Priority and usually which client it’s for. And when the task is complete, I check it off as being done. With this in mind, I decided to create a simple MySQL database named “todos” with initially a single table “todolist”. And use TMS Web Core with Bootstrap 4 and PHP to maintain this list.

As I was working on this project the thought came to mind that maybe other Delphi developers could use this project as a way for them to learn TMS Web Core. It’s a project in progress, as I’m still learning the in’s and out’s of TMS Web Core.

Sample screens.

TMS Software Delphi  Components

Above is the main screen. The app uses TMS Web Core with various elements linked to the Bootstrap 4 CSS using primarily “ElementId” and “ElementClass” properties in the components of TMS Web Core. When you click “Edit”, you’ll get the screen below.

TMS Software Delphi  Components

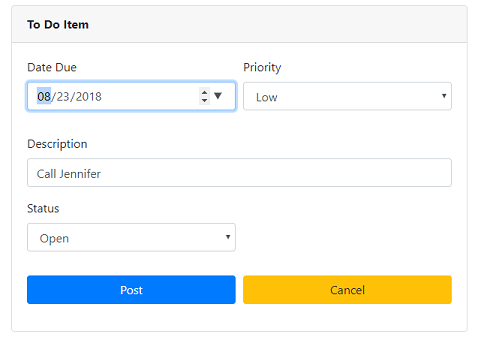

Here the TMS Web Core components are merged with a Bootstrap 4 form to produce the results shown.

Briefly the “Date Due” uses the component “TWebDateTimePicker” linked to a “form-group” item on the Bootstrap 4 form. “Priority” uses the “TWebComboBox” linked to a “select” form item on the Bootstrap 4 form.

The “Post” and “Cancel” buttons are “TWebButton” components linked to Bootstrap 4 styled buttons with “OnClick” events to handle the Posting or Cancelling of the information.

The initial templates I used are at the website “Start Bootstrap”. They are an “MIT” license. Here’s the link:

Start Bootstrap

I downloaded these templates and placed on my external drive and then copied the necessary html, JavaScript and CSS into my run time folders. All these files are on the run time zip I’ll be providing.

Please refer to a description of the folder usage later in this tutorial for more information.

The database.

MySQL is used to store the table “todolist”.

Here is the definition of the “todolist” table:

		DROP DATABASE IF EXISTS todos;
		CREATE DATABASE todos;
		USE todos;
		DROP TABLE IF EXISTS todolist;
		CREATE TABLE todos.todolist (
		  Id INT(11) NOT NULL AUTO_INCREMENT,
		  Description VARCHAR(255) DEFAULT NULL,
		  Complete INT(1) DEFAULT NULL,
		  Priority INT(11) DEFAULT NULL,
		  DateDue DATE DEFAULT NULL,
		  PRIMARY KEY (Id)
		)
		ENGINE = INNODB
		AUTO_INCREMENT = 1
		CHARACTER SET utf8
		COLLATE utf8_general_ci
		ROW_FORMAT = DYNAMIC;


Nearly all tables I use in my apps have a field named “Id”, which is the primary key and is “auto increment”. Using this method it’s very easy to link tables on queries.

The field “Complete” is treated as a Boolean with zero indicating it’s still open and one indicating complete.

If there was going to be a large amount of data, I would also be defining alternate keys. But for the tutorial, I’m keeping it as simple as possible.

Delphi source files.

I created a folder named “Tutorials” and within it a folder named “ToDo1”. In the “TutorialsToDo1” folder are the following source files:

TMS Software Delphi  Components

The next sections will briefly describe the files. For further information please refer to the comments in the source.

Index.html

This file contains skeleton html. This file was modified for the Bootstrap 4, jQuery components. Here are the key parts:

TMS Software Delphi  Components

Main.pas / Main.dfm / Main.html

This the main screen which contains the menu sidebar, plus a panel that acts as a parent to sub-forms. The “ElementId” properties on “Main.frm” are linked to html “id’s” in the “Main.html”.

Here’s the form:

TMS Software Delphi  Components

Here’s the form after being merged with the html:

TMS Software Delphi  Components

Pretty neat. Here’s what is in Main.html for “Refresh To Do’s”:

TMS Software Delphi  Components

Note the span above with the id “main.menu.todo.list”. Here is the Delphi side:

TMS Software Delphi  Components

When the Main form is opened, TMS Web Code merges these items to render the page.

View.ToDo.List.pas / View.ToDo.List.dfm / View.ToDo.List.html

This form is where the To Do items are listed in a Bootstrap 4 table. The form is embedded as a sub-form on the panel container in “Main.frm”. Please to the screen shots above which shows the embedded form in the Main container panel.

Here is Main.html and where the embedded form is placed:

TMS Software Delphi  Components

Here is View.ToDo.List.html:

TMS Software Delphi  Components

The above html is merged with “main.container” to show the list of To Do’s.

Within this form is a “TWebTableControl” named DataGrid. When this form is created, it calls the PHP script todolist.php.

Here is the call that is made to the php script:

TMS Software Delphi  Components

When the “LoadFromJSON” is made the URL looks like this:

TMS Software Delphi  Components

todolist.php builds a JSON response using the criteria passed as shown above. Then encodes the JSON response in PHP as:

TMS Software Delphi  Components

Here is a sample of the JSON returned:

TMS Software Delphi  Components

“Id” shown above becomes Column zero in DataGrid, “DateDue” becomes Column 1 in DataGrid, etc. Here’s what it looks like once loaded:

TMS Software Delphi  Components

You’ll notice that “Id” is not really showing. Instead is a Bootstrap Button. This is accomplished with the “OnGetCellChildren” event that is part of “TWebTableControl”. Here's the code:

TMS Software Delphi  Components

If the column passed is Column zero, “AValue” contains the “Id” of the To Do item being loaded. A "TWebButton" is created. The contents in Column zero are replaced with a Bootstrap Button and “Id” is placed in “TWebButton.Tag”. At this point when you click on one of the Edit buttons, you’ll be able to retrieve the To Do item’s Id and in turn create the form “EditToDoItem” and pass the Id to the form. The editing process is described in the next section. Here’s the code that does this:

TMS Software Delphi  Components

The “Sender: TObject” above is the Edit button. The “Tag” contains the “Id” of the To Do item. When “EditForm” is created it uses “@AfterCreate” that is called once the form is created. And in “AfterCreate” a call is made to load the To Do item’s information. At this point the Edit form is shown via “EditForm.ShowModal”.

Edit.ToDo.Item.pas / Edit.ToDo.Item.dfm / Edit.ToDo.Item.html

This is a popup modal form where you can add new items and edit existing items. This form is created when you click the “Edit” button to edit existing To Do’s or when you click “New To Do” on the main form. Here’s the form:

TMS Software Delphi  Components

Here’s the form after being merged with the html:

TMS Software Delphi  Components

When the form is created to edit a To Do, “gettodoitem.php” is called passing the Id of the To Do item this way:

TMS Software Delphi  Components

The “ToDoRequest” above is a “TWebHttpRequest” component. Here is a sample URL passed to “gettodoitem.php”:

TMS Software Delphi  Components

Here is the JSON response:

TMS Software Delphi  Components

Part of a “TWebHttpRequest” component is the event “OnResponse”. One of the variables passed to this event is the Response which is the JSON response shown above. Here I use TMS’ JSON to decode and place the values into the form:

TMS Software Delphi  Components

Once the information is entered, you will press “Post”. This button is labeled “PostBtn” and has an event associated with it, which takes the information off the form and builds arguments which are then passed to “posttodoitem.php” which updates the To Do list data. The call is made here:

TMS Software Delphi  Components

What I used.

Delphi and TMS Web Core.

I’m using Delphi Tokyo (10.2.2) with TMS Web Core. I assume you have both Delphi and TMS Web Core already installed.

MySQL

I separately downloaded and installed the MySQL community edition. Please note, Apache as described below, now comes with “MariaDB” instead of MySQL, thus the separate download. Here is the link to the MySQL community edition:

MySQL download

Apache and PHP.

I’m using MySQL and Apache (with PHP) to handle the web server and database. As noted I installed MySQL separately. Here is a link to “XAMPP” along with instructions for installation:

Apache download

dbForge Studio Express for MySQL from Devart.

Apache “XAMPP” comes with “PhpMyAdmin”. This is just my opinion, but I think it’s clunky. I’ve been using DevArt’s “UniDac” components in my Delphi apps for quite some time and like the way I can easily switch between MySQL and SQL Server. As an alternative to “PhpMyAdmin” I use their Studio Express to maintain the MySQL databases. Here is the link:

dbForge Studio download

Note, select the download for the Express version.

Folders used.

Source folders.

The Delphi source for this project is on my “C:” drive and is located here:

TMS Software Delphi  Components

Source download

Note "todolist-create.sql" is also on this download. Use it to create your "todo" database.

Run time folders.

The Apache run times are installed on my “C:” drive at the standard XMAPP location:

TMS Software Delphi  Components

Runtime download

Conclusion.

I hope this has been useful. If there are suggestions, bugs found, etc, you can reach me at larry@lwadsworth.com Based on reception, I might create a version two of the tutorial, which would have Categories for the To Do’s. This way you would be able have you items categorized, such as “Personal”, “Client” To Do’s.

Thanks again,

Larry Wadsworth
