Adding HTML, CSS & JavaScript to your native applications with TTMSFNCWXContainer

Bookmarks:

Thursday, April 7, 2022

Always wanted to use interesting JavaScript libraries with functionality not readily available in Delphi or C++Builder in you VCL and FireMonkey applications? Or integrate HTML Components? The TTMSFNCWXContainer component let's you do just that! Simply adding a container to the component and setting the HTML, CSS & JavaScript is enough to get you started.

TMS Software Delphi  Components

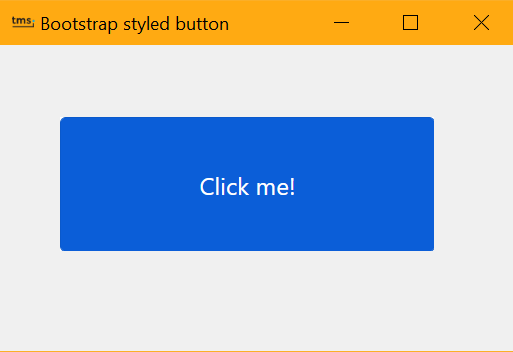

This example is a simple HTML Button styled with Bootstrap. We've tweaked the CSS a bit to make sure the button is the size of the whole component to get this result.

TMS Software Delphi  Components

From here you can write your own JavaScript to be executed when the user clicks the button. But you can also add assign an action to it. To do this, simply add an action to the Actions collection and assign the HTMLElementID. Subscribe to the OnExecute event and put your code there. the AEventData contains all information from the JavaScript. Or you can go the other way around and call JavaScript functionality from the pascal side with the ExecuteJavaScript function.

procedure TForm5.TMSFNCWXContainer1ElementContainers0Actions0Execute(
  Sender: TObject; AEventData: TTMSFNCCustomWEBControlEventData);
begin
  TMSFNCWXContainer1.ExecuteJavaScript('$("#clickbutton").removeClass().addClass("btn btn-danger")');
end;

As you can see this OnExecute event calls the ExecuteJavaScript and uses jQuery functionality to remove all CSS classes and add the "btn btn-danger" class. This means that when you click the button it will change from blue to red.

TMS Software Delphi  Components

Last but not least you can use the JavaScript Bridge to send data from the JavaScript to the pascal code. To do this call the 'CallBack('eventname', eventData) function in your JavaScript and subscribe to the OnCustomEvent of the component.





Bradley Velghe
